5-25x56 Hight Magnification Low Power Scopes Tactical Scopes for Hunting
Features
Material:This tactical hunting scopes is 30mm aluminum alloy
monotube.
Low power scopes,this tactical hunting scopes's battery is only
3V,very low power.
This tactical hunting scopes just design for your wildlife
activities,it is suitable for long gun,outdoor hunting.
High Power Scope With Tactical Target Turrets and illuminated
Ranging Reticle Pattern.
Waterproof: IPX7 level waterproof standard stay in 1.5m deep water
for 30 min.
Fogproof: vacuum and lifetime pressurising with a mixture of
nitrogen and rare earth gases to prevent fogging or hazing from
-51F to +212F,Vaporless, fogless, mirageless from well below sea
level to 8km altitude.
Shockproof: Shock proof (to greater than 1000G) all lenses have
fore and aft machined locking rings.
Turret Lock: Patented internal locking turret design.
Fully multi-surface to surface-coated lenses for sharpest and
brightest image, hard anodized black matte finish
Extra-low dispersion lens applied
Innovative optical design for extra-wide zoom range
High precision aluminum CNC processed parts
Low profile and finger-adjustable turrets for positive click
adjustments
Glass etched Mil-dot reticle
Fast focus eyepiece
30mm one-piece tube
13 piece of fully multi-coated lens
Side focusing easy for adjustment
Reticle: Revolutionary front and rear reticle focal plane design
dramatically reduces parallax & provides an immovable reticle plane
with variable power accuracy identical to fixed power designs.
Includes scope rings, removable sunshade, tactical flip-open lens
covers
A complete, easy to install, bolt-on scope solution kit for your
favorite riflescopes
Specifications
Product name | 5-25x56Tactical Hunting Scopes |
Magnification Low | 5 |
Magnification High | 25 |
Objective diameter | 56 |
Maintube diameter | 30 |
Eyepiece Field of view | 18 |
Diopter range +/- | 2 |
Exit Pupil Distance (mm) | 101.2 |
Standard Klick value for E/W (MOA) | 0.125 |
Tactical turret adjustments knob | yes |
Total travel elevation (@ 100 yds) | ≥ 50MOA |
Total travel windage (@ 100 yds) | ≥ 50MOA |
Parallax Compensation | 25 yds. - ∞ |
Parallax compensation type | Side focus |
Fast focus eyepiece | yes |
Sealing gas used | Nitrogen |
Clear aperture min magnification (mm) | 50 |
Clear aperture max magnification (mm) | 56 |
Eff. exit pupil diameter @ min. magnification ± 3 % | 10 |
Eff. exit pupil diameter @ max. magnification ± 3 % | 2.24 |
Maximum resolution in Arc. Second (min. Magnification) | 4 |
Maximum resolution in Arc. Second (max. Magnification) | 3 |
Range of Function temperature (Unit can still be operated) | -25°C/+55°C |
Storage temperature | -40C to +85C |
Range of Dioptric compensation +/- dpt | 2 |
Permissible backlash Dioptric Compensation | <0.25dpt |
objective field of view @ 100m min magnification (ft @100yds) | 19.495 |
objective field of view @ 100m max magnification (ft@100yds) | 3.899 |
Change of impact point after change of magnification (MOA) | 0.75 |
Parallax of Reticle (minute) | |
Centering Reticle, full Field of View | ± 7 % |
Straightening of the Reticle | ± 2 ° |

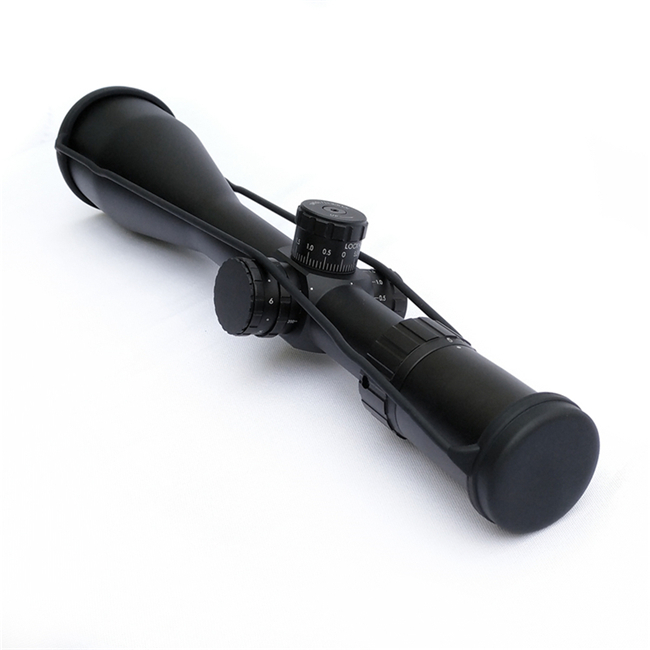

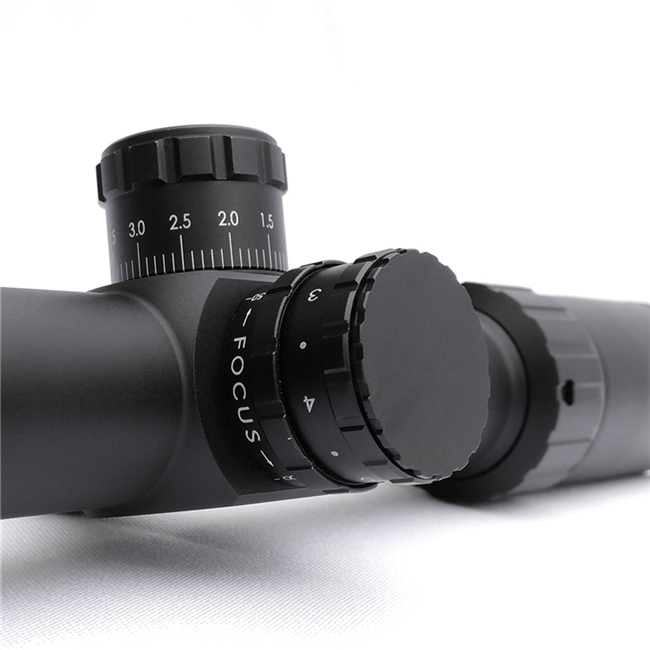

More Photos of Product
![]() |
